100T Conventional welding rotator

Short Description:

Load capacity – Set:     100 tons maximum

Load capacity – Drive:  50 tons maximum

Load capacity – Idler:   50 tons maximum

Rotation capacity:       100 tons maximum

Vessels diameter:        Min.800mm ~ Max.5000mm

Rotation speed:           100~1000mm/min VFD

Rotation power:           2*3kw with fan cooling

Roller wheels:              PU (Polyurethane wheels)

Control system:           Remote hand control & Foot pedal

Voltage:                      110V ~ 575V all available.

  • Certificates: CE
  • Delivery time: At stock
  • FOB Price: 1*,***.00
  • Product Detail

    Control System & Package

    Our Projects

    Product Tags

    The  Conventional welding Pipe Rtators has two types,bolt adjustment and lead screw adjustment.the bolt adjustable Roller center distance could be manually adjusted by reserved screw bolt, so as to suitable for various work piece diameter. CR series conventional welding rotator can be supplied with a capacity from 5000 kg up to 1000 Tons.It is produced according with mechanical standard JB/T 9187-1999.It can joint control with other equipments such as welding manipulator,welding machine, gantry type welding machine and so on.

    Here Below is 100T Bolt Adjustable Tank Turning Rolls With PU Wheels specification:

    Model CR-100
    Load capacity – Drive 50 tons maximum
    Load capacity – Idler 50tons maximum
    Load capacity – Set 100 tons maximum
    Rotation capacity 100 tons maximum
    Vessels diameter Min. 800mm ~ Max.5000mm
    Rotation speed 100~1000 mm/min VFD
    Rotation power 2*3kw with fan cooling
    Roller wheels PU (Polyurethane wheels)
    Control way Remote hand control + Foot pedal
    Input Voltage 110V ~ 575V Single/3 Phase 50/60Hz
    Certificate CE approval

     Bolt Adjustable Vessel Welding Rotator Description:

    1. Our welding rollers pack One drive piece roller & one idler piece roller  together as one set for sale.

    2.Remote hand control, Radio hand control & Foot pedal control are all avaialble for  rotation welding machine.

    3.Our tank tuning rolls’ drive rotation speed  is in digital readout.

    4.Depends on different application, the roller surface has three types,PU/RUBBER/STEEL WHEEL

    5.Top-class electronic components from Schneider to ensure long time using life.

    6. 100% new from original manufacturer – WUXI SUCCESS MACHINERY EQUIPMENT CO., LTD.

    Tank Turning Roller Machine Advantages :

    1. All our welding roller bed inverter is from Danfoss.

    2. All our offshore rollers motor is from Invertek.

    3. All our roller welding machine electronic components is from Schneider.

    Welding rotator spare parts

     4.CE certificates to European market and CO certificates with welding rotators to Middle East market.

     Why Choose Wuxi Success pipe welding rotators:

    1.Mainly used for big pipe, containers, boilers, pressure vessels, oil tank, wind tower and other cylinders assembly welding, blasting and painting.

    2.The rotator will be fully installed before package for delivery in wooden case.we also supply installation service.

    3.One year warranty for welding rotator quality and free supported for spare parts.

    4.We have strong delivery team, including the Sea freight and Air transportation. Door to door available.

     5.Overseas agent is available in Italy and America market.

    Our suggestion:

    1.If your single pipe length more than 8 meter, we suggest you choose one drive roller and two idler rollers to support.

    2.If your tank material is stainless steel,then please choose our PU wheels roller wheels.

    3.If you want the foot pedal control , please advise me when you send us the inquiry.

    4.Movable pipe welding rollers are also available.

    5.We suggest you choose the welding column and boom together with the rollers for auto tank welding.


  • Previous:
  • Next:

  •  Adjustable Welding Roller Beds Control System:

    1. All Our Conventional  welding Turning Rollers are with standard remote hand control box and foot pedal control.

    2. Wireless / radio hand control are available for Tank Roller Welding Machine,but normally for heavy duty and long pipe / tanks.

    welding rotator Control

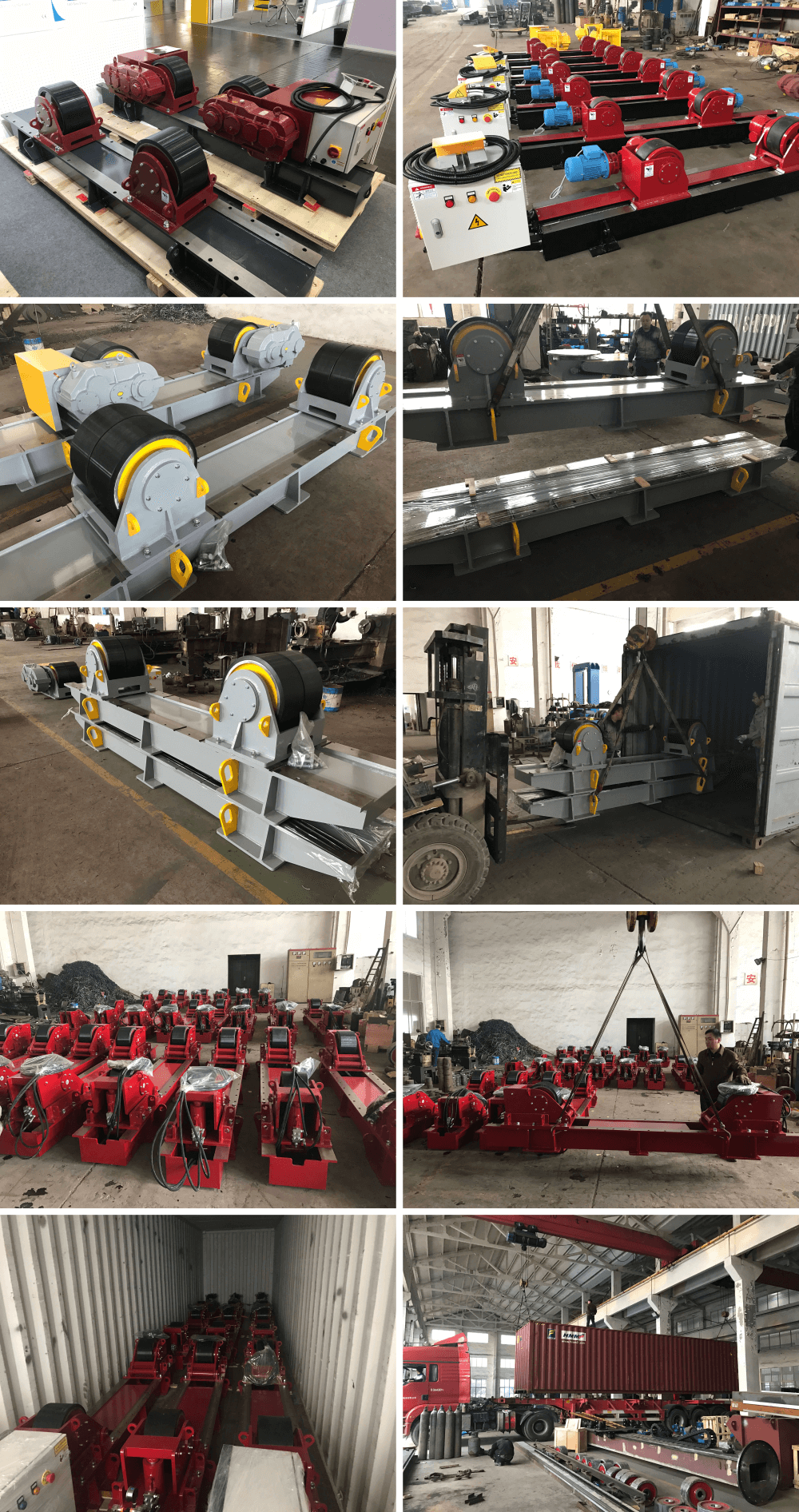

    1. If order one / two sets pipe rollers,then we will pack  in wooden case for LCL shipping ,as well with installation details.

    2. If the welding turning  rollers order quantity enough for one whole containers,we will pack into containers directly.


    1. Wuxi Success Machinery & Equipment CO.,LTD  have exported welding turning rolls to more than 30 countries in the world. European & America stocks is available.

    2. Here below some pipe welding turning rotator working pictures are all from our clients feedback from their work site.

    Australia 30T Lead Screw Conventional Pipe Welding Turning Rolls.

    conventional welding rotator

    ITALY 40T  and 60T  Bolt Adjustment Tube Welding Rotators with PU wheels.

    conventional rollers


    100t welding rotator
