3 axis hydraulic welding positioner is mainly consist of rotary worktable unit and tilting unit. With worktable hydraulic lifting, tilting and revolving, the workpiece fixed on the worktable can be placed to the ideal position for welding and assembly.

Here Below is 2T 3 Axis Hydraulic Positioner Specification:

Hydraulic lift welding positioner Brief Description:

1. Hydraulic elevating (pressure >20 MPa) almost every available working height is possible.

2. It can overturn the work piece 360°, tilt in 0~120°.Hydrulic Lifting System 900 mm lifting stroke.

3. European made high quality hydraulic components Steplessly adjustable speed.

4. The strong and durable construction creates a very high stability.

5. Top-class electronic components from Schneider. and braking device can ensure column work in safe environment.

6. The standard configuration includes a remote control which is equipped with a digital readout and a foot pedal (Left/Right).

Clamps for reference:

1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.

2. Special clamps are available,but we have to design according to your work piece detail drawings.

3. Special tilting platform is available.

3 Axis Hydraulic Lift Pipe Welding Positioner Spare Parts Brand:

1. Automatic Welding positioner Inverter is from Danfoss / Yaskawa.

2. Hydraulic pipe positioner Electric system is from Schneider.

3. Hydraulic welding rotary positioner Motor is brand  Invertek.

4.CE certificates to European market and America market.

Delivery and after sale service:

 1. One / Two sets we will package in wooden case.

2. If order quantity is enough for one container, we will package in container directly.

3. We have engineers supply you the door to door installation service.

4. All the installation drawings and work manual document will send to you via Email.

5. We are the factory, so we can supply you all the technology problems helps.

Our Related Products:

Pipe welding rollers,tank turning rolls,pipe rotator, welding rotator,pipe turning rolls,pipe turning rotator, self-aligning welding rotator,lead screw conventional welding rotator,pipe roller beds,wind tower welding rollers,welding positioner, gear tilt positioner,rotary welding positioner,welding turntable,automatic positioner,lift welding positioner,hydraulic welding positioner, tank welding positioner, horizontal positioner,height adjust welding positioner,welding manipulator,column and boom,column boom welder, cross welding manipulator.

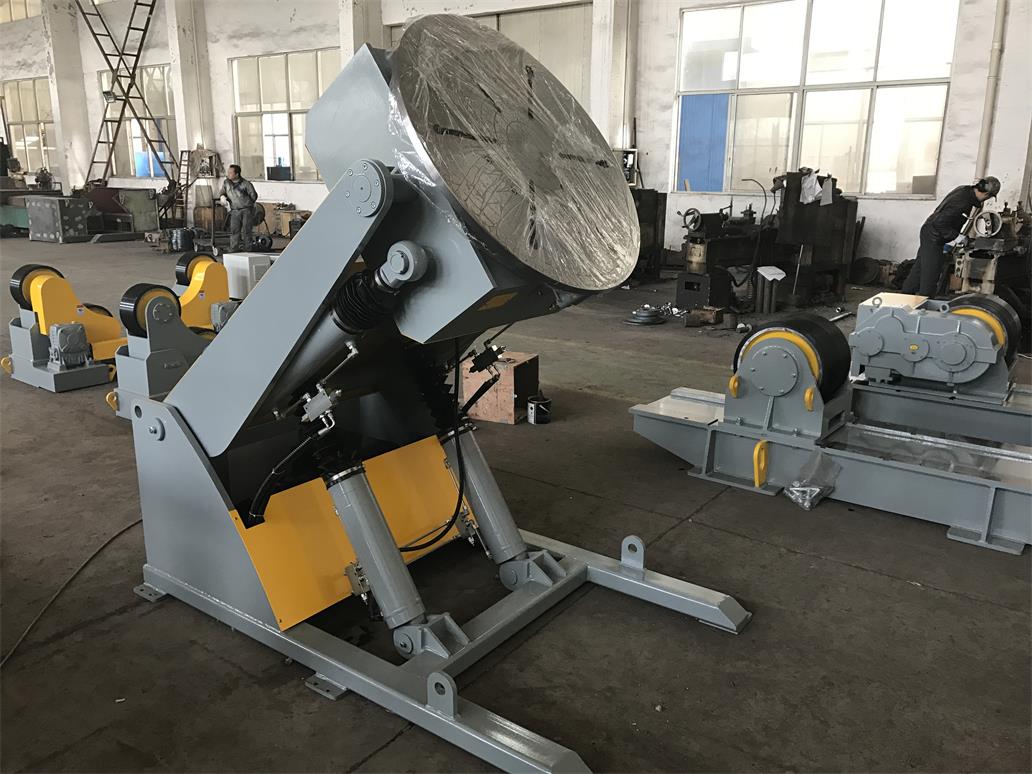

Deatail Picture:
