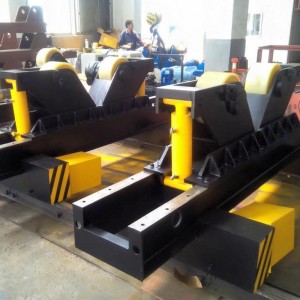

20T Self Aligning Rotator
Control System & Package
The self-aligning welding rotators are designed so that the rollers adjust automatically it’s center distance to fit different vessel diameters. Our Rotators feature is powerful, reliable motors, easy to operate controls, and are ruggedly constructed of heavy steel plate for stability and long service life. all of our rotators can be integrated with our welding manipulator controls for increased flexibility and efficiency in pipes welding rollers, tanks rolls fabrication industry.
Here below is the 20T Self Aligning Welding Rotators specification:
|Load capacity – Drive||10 tons maximum|
|Load capacity – Idler||10 tons maximum|
|Load capacity – Set||20 tons maximum|
|Rotation capacity||20 tons maximum|
|Vessels diameter||Min. 500mm ~ Max.3500mm|
|Rotation speed||100~1000 mm/min VFD|
|Rotation power||1.5kw with fan cooling|
|Roller wheels||PU (Polyurethane wheels)|
|Control way||Remote hand control + Foot pedal|
|Input Voltage||110V ~ 575V Single/3 Phase 50/60Hz|
Our Tank Body Welding Roller Welding Rotator feature:
1. Our Welding Rollers consist:One drive piece roller & one idler piece roller are packaged together as one set for sale.
2.Our Tank Turning Rolls Control way:Remote hand control, Radio hand control & Foot pedal control are all avaialble.
3.Our Pipe Welding Rotator adjust way:Adjust the pipe diameter automatically with diameter 12 – 110 inches
4.Our Roller Material : Rubber / Steel / PU ( Polyurethane roller for Nonferrous Metals )
5.Manual traveling base frame or motorized traveling base frame is available for longer pipe welding.
6.100% new from original manufacturer – WUXI SUCCESS MACHINERY EQUIPMENT CO., LTD.
Wuxi Success Tank Turning Rolls Spare Parts Brand And Advantages:
●Inverter and Main electric elements are Danfoss / Yaskawa.
● Motor is UK brand Invertek.
● VFD rotary speed control, improving the reliability of operation.
● Steel or PU roller which can ensure a long time using (at least 2 years).
● This welding rotator accept testing before delivery.
●This welding rollers accept special design and custom.
1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning pipe welding rollers / Bolt adjsutment / Lead Screw adjustment / Fit up rotators are all available.
More Questions Customers May Concerned On Welding Machine:
Q : What about the transportion?
A : 1. Fully packaged in wooden case to anti damage during the transportational process .
2. Usually we take seaway ,cause its more convenient and cheaper for big machine.
3. Door to door delivery service is also available.
Q : What is your warranty and after sale service ?
A : 1. All our equipments with One Year Warranty time , fully test at our work shop before delivery.
2. If you have any questions on the installation , you will get our engineers respond within 24 hours.
Pressure vessels welding rollers/ Pipe manufacturing industries/Wind power fabrication/Chemical & fuel storage tank fabrication/Any heavy cylindrical tank rolls/Boiler industry/Storage tank fabrication/For Welding pipe turning rolls/ Polishing/ Positioning welding.

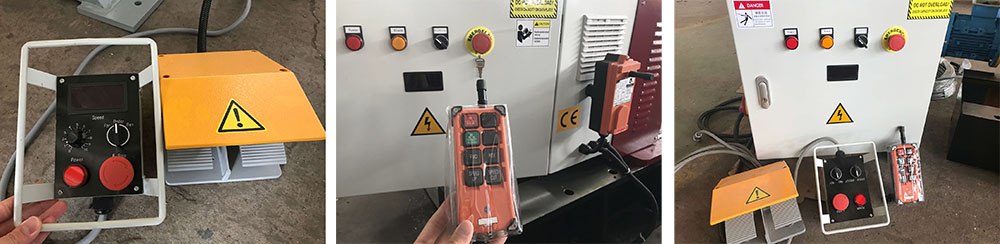

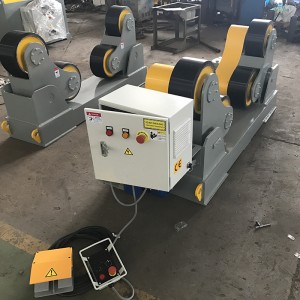

1. Our pipe welding rollers are all with standard remote hand control box and foot pedal control.
2. Wireless / radio hand control for welding rotators are available,but normally for heavy duty and long pipe / tanks.

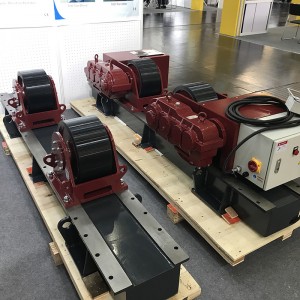

1. If order one / two sets welding rotator,then we will package in wooden case with installation details for LCL shipping.
2. If the welding rollers order quantity enough for one whole containers,we will pack into containers directly.
1. Our company(Wuxi Success Machinery & Equipment CO.,LTD) have exported our welding rotators to more than 30 countries in the world. European & America stock is available.
2. Here below with some Tank welding rolls working pictures are all from our clients feedback from their work site.
Mexico 10T self aligning welding rollers
ITALY 20T and 100T WELDING ROTATORS
AMERICA 40T SELF ALIGNING PIPE WELDING ROLLERS WITH MOVABLE TRAVELING WHEELS
